Designing with Microcontrollers -- The 68HCS12 has been available to the public since July 2004, and is now at revision 7a. The package provides the text, documentation, and software necessary to learn about microcontrollers, and specifically programming the 68HCS12 CPU and peripherals.

What's provided

Designing with Microcontrollers -- The 68HCS12 comes on a CD which contains:

• The textbook in HTML format for viewing.
• The textbook as a PDF file for printing.
• SIMHCS12, the 68HCS12 simulator
• 68HCS12 Assembler. Source code is provided.
• Eric Engler's AsmIDE for programming in assembly language, and EmbeddedGNU for C language development.
• Distributable copies of Adobe Reader (for PDF files) and Sun Java runtime, Microsoft Windows versions, if you don't already have them installed.
• 68HCS12 documentation

Installation

The textbook is readable on the CD without any installation. However there is an installer for Windows 2000, XP, Vista, Windows 7, Windows 8, or Windows 10 that will install all of the contents on the hard drive and add the programs to the Start menu.

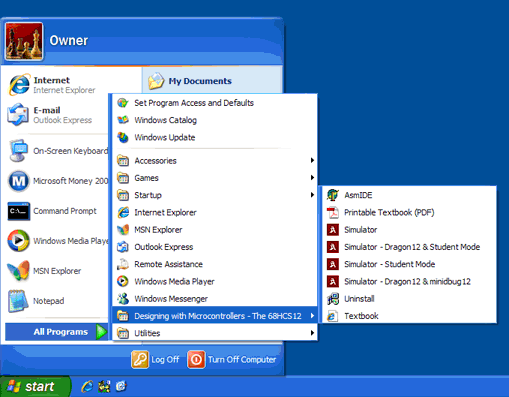

	Installation on Windows XP shown on left.

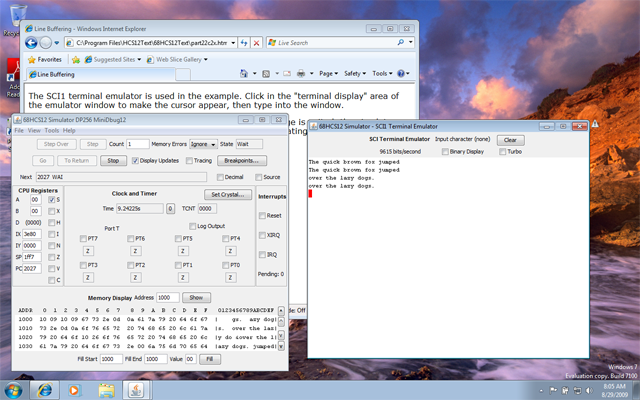

	Textbook and simulator operating under Windows 7.

Use on other platforms

The textbook (both HTML and PDF format) can be easily copied to any computer that can access the CD and be read using any browser and/or PDF reader. The Simulator, written in Java, has been tested under Sun Solaris, Mac OS X 10.3 through 10.11 (El Capitan), and several Linux distributions from Red Hat, Mandriva, and Ubuntu. The source code for the assember is in C, but compiled copies for Linux and Mac OS X (both PowerPC and Intel) are supplied. The only part of the package which is Windows PC only are the IDEs.

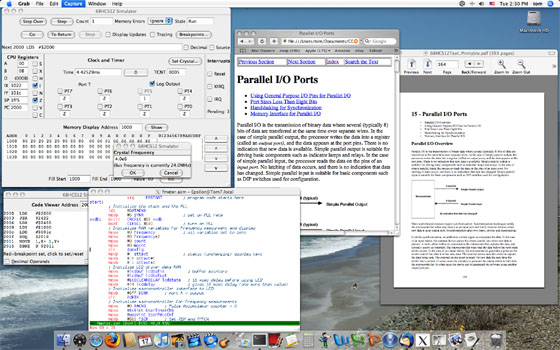

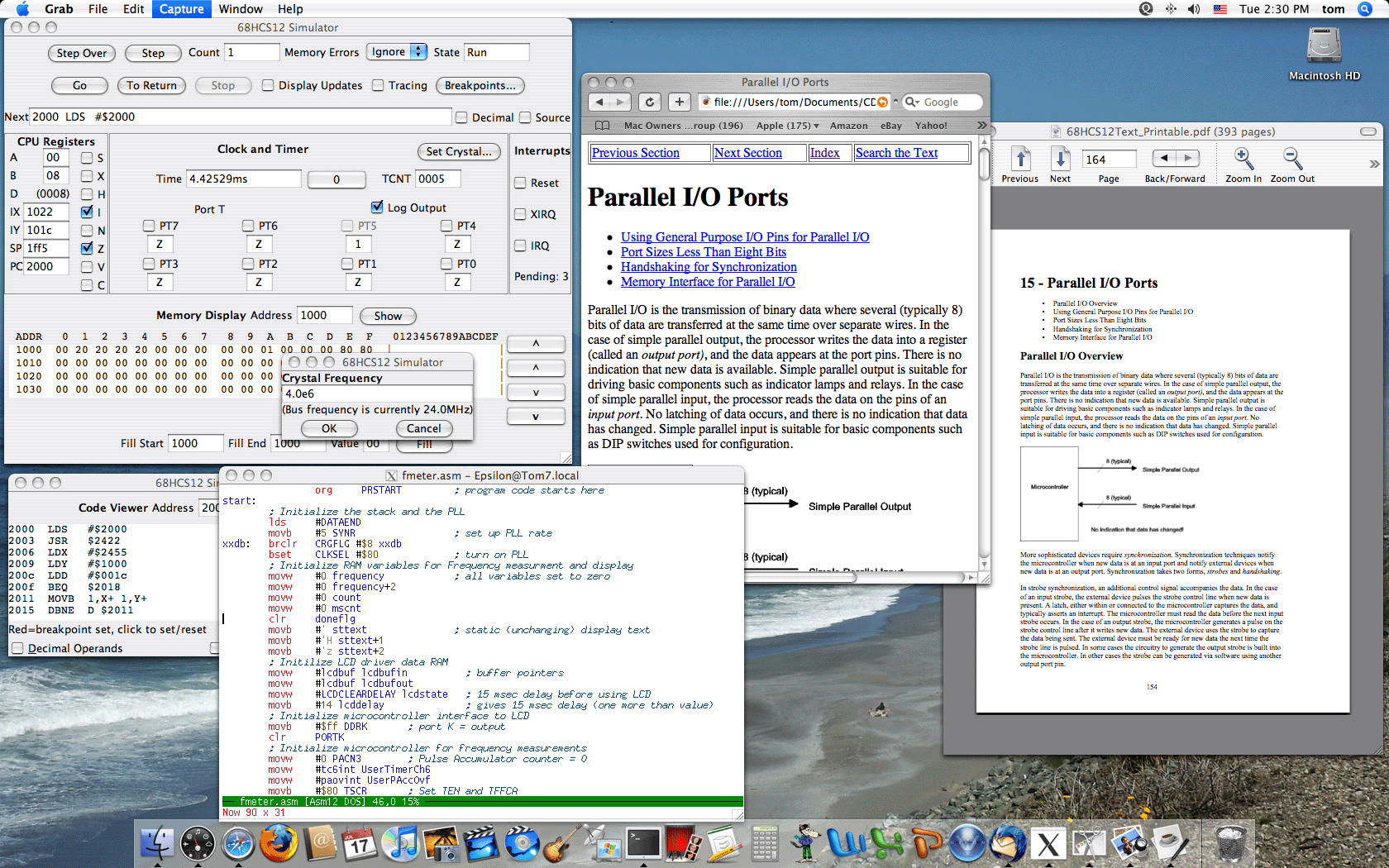

Installation on Mac OS 10.4 "Tiger" shown. Click on the image for a full-size view. The syntax coloring text editor, Epsilon, is not provided, but it is a very nice editor for multiple platforms.
